Teams should plan child resistance and serialization together from the start, as both often require the same carton space and affect the same packaging line. In CR carton and serialization projects, the safest approach is to reserve functional areas, opening instructions, regulatory text, and the code zone on the dieline prior to artwork approval. This helps reduce late changes, protects code readability, and gives the line team a clearer setup for printing, inspection, and reject handling.
• Plan the child-resistant function and the serialization zone on the dieline first, as late artwork changes often create risks.
• Keep opening instructions, press points, legal text, and the code area in fixed zones so that both people and cameras can read the pack correctly.
• Check the actual packaging line early, since serialized carton printing and camera verification depend heavily on station layout.
• Treat child resistance and tamper-evident packaging as separate controls, because they address entirely different risks.
• Use one integrated line trial before launch so that carton function, serialization, and reject logic can be proven together.
Why CR cartons and serialization should start at the dieline
Many teams still treat child resistance and pharmaceutical serialization as separate tasks. This often causes trouble later on, because the same carton panel may need room for opening features, instructions, legal text, and a code. The dieline is the flat carton layout before production. It dictates folds, glue areas, press points, and print space. That is why CR cartons and serialization should begin there. If the team resolves these layout conflicts early, artwork approval becomes much easier, and line trials are far more predictable.
What the carton adds to the layout decision

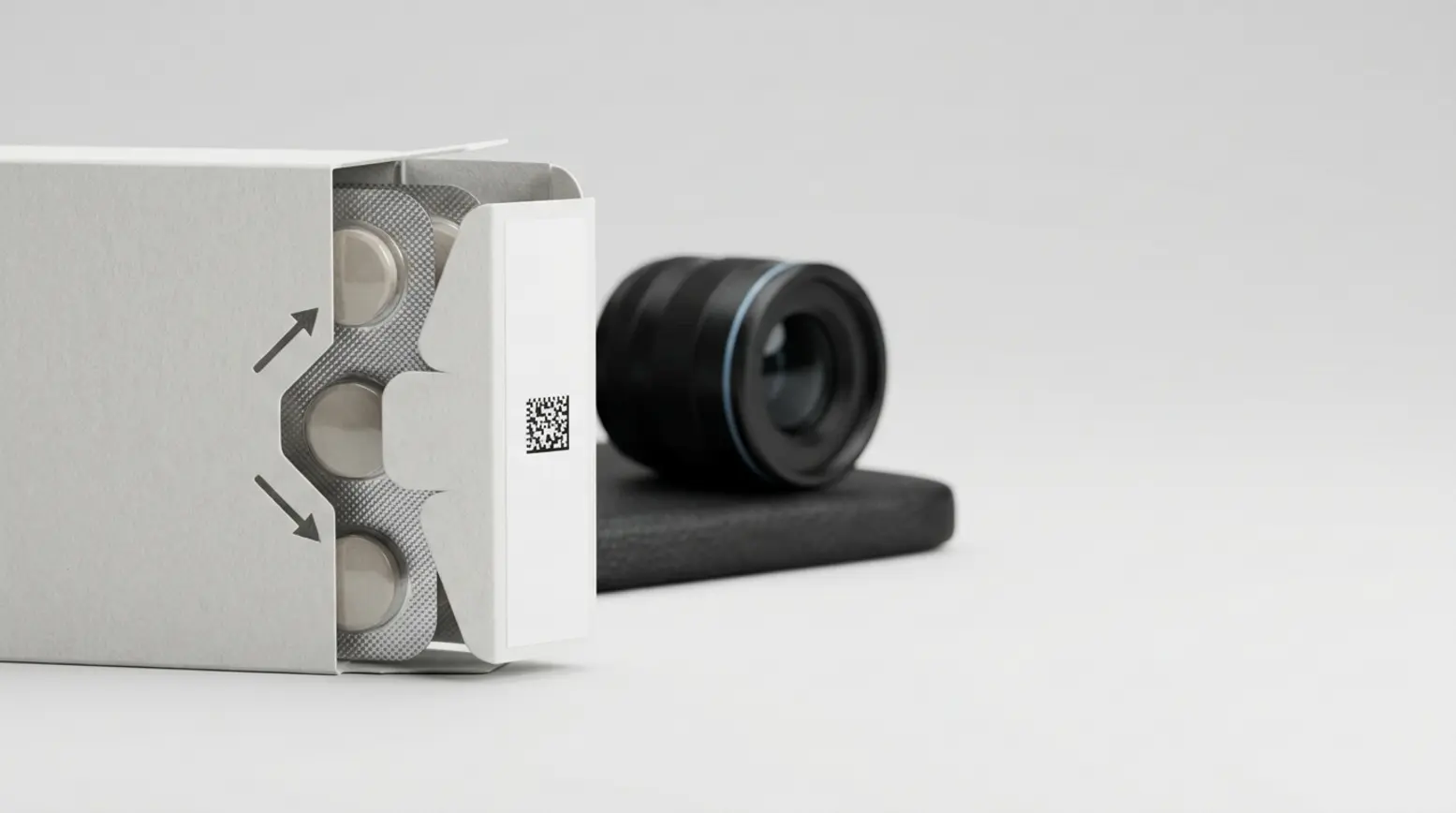

Our child-resistant carton uses a tray and two diagonal push points to open. As a result, certain areas of the carton have a fixed function and cannot be freely used for graphics or unique identifiers. Opening instructions must also remain perfectly clear, as adults need to understand how to use the pack correctly. In CR carton and serialization work, this creates a direct layout challenge, since the function of the pack and the code area often compete for the same surface space.
Why the blister can usually stay the same
In many projects, the blister strip does not require a redesign. The child-resistant feature is built around it, meaning the inner product format can typically remain unchanged. This approach saves time and minimizes disruption to both tooling and product setup, a concept we explore further in our guide to child-resistant blister packaging. Consequently, teams can focus their efforts entirely on the carton structure, the code area, and the line setup.
What CR cartons and serialization need from the carton surface
Serialization requires far more than just a small empty box on the artwork. The code area must feature clear space, good contrast, and stable print quality to ensure scanners can read it accurately. In carton serialization, a pharmaceutical 2D DataMatrix code often sits close to human-readable text like batch numbers, expiry dates, or serial data. If these elements are added too late in the process, the layout can quickly become crowded. Therefore, the artwork team should reserve this space early and confirm that it remains viable after production handling.
Clear space for the code
A code should never sit on a fold, score line, glue area, or moving panel if doing so could compromise print quality or scanning. The reserved zone should also avoid busy background graphics. If the code is printed as variable data, meaning the information changes on every individual pack, the team should test the print method and carton board early. This directly supports pharmaceutical artwork serialization, as both the board surface and the printing process greatly affect final readability.
Code readability after closing and handling
A code that looks flawless on a flat blank can still fail later. It must remain fully readable after the carton is closed, transferred through the line, and subjected to normal handling. Rubbing, dust, pressure, and movement can all degrade the final result. Therefore, the closed carton must be carefully checked rather than just evaluating the flat sheet. This is critical for any serialized carton printing process, as the final assembled pack is exactly what the market receives and what downstream scanners will attempt to read.
Human-readable information and unique pack data
Many markets require both machine-readable and human-readable data to appear together. Human-readable text simply refers to information that people can read without the need for scanning equipment, such as the serial number and nearby product details. These items demand deliberately planned space, as a crowded layout can severely reduce readability for both consumers and cameras. Ultimately, a clear, dedicated print zone is safer and much easier to control.
How CR cartons and serialization interact with the packaging line
The carton must also perform reliably on the actual packaging line. A pack might be printed or marked at one station and then checked by a camera at another. This exact sequence depends heavily on the specific line, making assumptions very risky. Because of this, CR cartons and serialization represent both a design issue and an operations issue. The project team should thoroughly review carton transport, print positioning, the camera's inspection view, and reject handling long before granting final approval.
Print station and camera verification
Most packaging lines have a clearly defined point for coding and a separate point for camera verification. The camera verifies whether the code is present, readable, and correctly matched to the expected data. If physical carton features sit in the wrong place, they can easily disturb the print position or obstruct the camera's view. Consequently, the code zone and the carton's functional features should always be reviewed together. This becomes especially important when the project includes DSCSA serialization or other strictly regulated coding requirements.
Controlled reject process for failed codes
If a code is missing, blurred, or unreadable, the packaging line requires a highly controlled reject process. The failed carton must be removed in a manner that strictly matches site procedures and data integrity rules. This matters immensely, as the physical reject and the digital record must remain perfectly aligned. If that crucial link breaks, significant traceability problems can quickly follow. Since the exact reject process depends entirely on the line setup and the local quality system, it should be confirmed well before launch.
Machine fit of the CR carton
Our cartons are designed so that they run on standard pharmaceutical cartoning lines at normal speeds, but every line still requires a thorough review when serialization equipment is added to the setup. A carton might run flawlessly in general yet still require specific checks at the print, inspection, or reject stations. Functional press points, folds, and panel shapes must never disrupt stable transport or reliable camera reading. Conducting a single, real-world line trial provides a much clearer answer than relying on disconnected assumptions from separate teams.
Market rules that shape CR cartons and serialization
Market rules matter immensely, as coding and safety requirements vary significantly from one region to another. Teams should identify and separate United States and European Union needs early in the project lifecycle. While this article offers practical guidance, it does not constitute legal advice. Final regulatory requirements should always be verified for the specific product, target market, and supply chain, as rules can and do change.
United States rules
In the United States, many prescription drugs require product identifiers under the DSCSA framework. These identifiers typically appear on the pack in both machine-readable and human-readable forms. This dual requirement directly affects artwork space, print quality standards, code checks, and data handling. Therefore, DSCSA serialization planning should remain closely connected to carton design decisions right from the start.
European Union rules
In the European Union, certain medicinal products within scope require a unique identifier and an anti-tampering device under the Falsified Medicines Directive packaging framework. Anti-tampering means that the pack clearly shows signs if someone has opened or otherwise altered it. It is important to note that child resistance does not automatically fulfill this specific requirement. The final pack must always be reviewed against the exact needs of the target market.
Confirm current rules before approval
Requirements can shift depending on product type, country, sales channel, and supply chain setup. Some teams also utilize pharmaceutical packaging aggregation, which involves digitally linking individual cartons to larger cases or pallets in the tracking system. This supports downstream tracing, but only if the packaging line and market setup are properly aligned. It is best practice to confirm the latest compliance rules before finalizing artwork and locking the tooling.
Artwork conflicts in CR carton and serialization projects
A very common, late-stage problem is simply a lack of space. Teams frequently leave code placement and legal text formatting until the visual design is almost entirely complete. Invariably, one item grows in size and pushes another into a fold, corner, or critical functional zone. In CR carton and serialization projects, this can create severe risks regarding ease of opening, scanner readability, and project approval timing. The best way to avoid this cascade of issues is to definitively map out fixed zones on the dieline from day one.
Opening instructions and visible press points
A child-resistant pack must still remain easy for adults to understand and operate. The press points must stay highly visible, and the opening instructions should remain perfectly clear on the final assembled pack. If busy graphics obscure these visual cues, everyday ease of use can suffer greatly. Therefore, user guidance should be treated as a strict, fixed requirement, rather than something that can be moved late in the process just for design convenience.
Regulatory text and code area need fixed zones
Regulatory text, user instructions, and the serialized code area each demand their own dedicated space. A cramped, leftover area is rarely stable enough to support reliable scanning or reading. For this reason, pharmaceutical artwork serialization should include precise panel allocation at a very early stage. When every necessary item has a thoughtfully planned zone, the carton becomes significantly easier to approve and much smoother to run on the line.
Protect the certified design
Our designs are certified to ISO 8317 and F=1 under US 16 CFR 1700.20, but it is important to remember that this certification applies to a highly specific design. Functional press points and locking geometry must never be moved simply to create more print space. If the structural design changes, complete retesting may become necessary. Therefore, layout conflicts must be resolved through smarter space planning, rather than by altering the certified safety mechanism itself.
Child resistance, tamper evidence, and pack data links
These topics are closely related, yet they represent distinctly different controls. Child resistance helps limit unauthorized access by children. Tamper-evident packaging clearly shows whether a pack may have been opened previously. Data links connect saleable individual packs to higher packaging levels to facilitate tracing and handling. Project teams should review each of these elements separately, because each serves its own unique purpose and carries its own regulatory requirements.
Child resistance and tamper evidence are different
A child-resistant feature should never be assumed to meet every tamper-evidence requirement on its own. Since these two controls address completely different risks, they require separate, focused reviews. In some markets, both features may be legally required on the final pack. Ultimately, regulatory and quality teams must confirm the correct combination of safety features for the specific product and target market.
Aggregation and data alignment
Aggregation involves linking serialized cartons to larger cases or pallets within the manufacturer's data system. While this greatly improves product tracing and downstream handling, it only works well when the digital data and physical pack flow remain perfectly aligned. If a carton is rejected or removed for rework, its digital status must be updated accordingly. Otherwise, the higher packaging level may end up containing incorrect or orphaned digital links.
Who owns each part of the project
Establishing clear ownership helps prevent costly project gaps. Packaging engineering should own the dieline, the carton's structural function, and its overall machine fit. Regulatory and quality departments should define the compliance rules, required safety features, and batch release logic. Meanwhile, the artwork, serialization, IT, and operations teams should collaboratively manage print zones, data architecture, code checks, and real-world line proofs. When broader execution support is needed, Ecobliss Pharma within our group can provide comprehensive contract packing, including serialization, while we remain intently focused on the core child-resistant carton format.
Packaging engineering
This team controls the core carton structure. They should dictate where the functional areas sit, determine what print space is genuinely safe to use, and evaluate how the carton will actually move through the line. They must also confirm that the chosen code location remains viable after carton closing and transport. Maintaining strict engineering control early on can prevent a multitude of later problems.
Regulatory and quality
These teams define exactly what must appear on the pack and what documented evidence is required for batch release. They should also confirm whether a specific anti-tampering feature is legally required in addition to child resistance. When it comes to market-specific coding, these teams help establish the correct regulatory rule set for the product. By clarifying these details upfront, the project avoids the dangers of false assumptions.
Artwork, serialization, IT, and operations
The artwork team must reserve dedicated space for the code, instructions, and legal text. At the same time, serialization and IT teams should configure the coding, camera verification, and data exchange networks. Operations or the designated contract packer should then prove that the final layout truly works on the actual packaging line. This shared review process is vitally important, as a good drawing alone does not guarantee a successful line result.
A combined preflight check before artwork approval
Before proceeding to tooling or artwork approval, the team should execute one combined project review. This helps uncover structural or layout conflicts while changes are still relatively easy and inexpensive to make. It also successfully keeps carton design, coding setup, and market rules within a single, unified discussion. As a result, the entire team is far better prepared for the upcoming line trial and the final product launch.
What to verify before tooling approval
• CR dieline: Confirm the approved carton structure, the functional press points, and the locking geometry.
• Code area: Reserve a stable, clearly defined zone for the 2D code and any nearby human-readable text.
• Opening instructions: Check that all user guidance remains clear and highly visible on the assembled final pack.
• Regulatory text: Confirm the required market text and lock in panel allocation prior to artwork release.
• Tamper-evidence approach: Verify whether the product and target market mandate a separate anti-tampering feature.
• Printing station and camera field: Confirm the print position, the camera's inspection view, and overall readability after closing and handling.
• Reject logic: Define exactly how failed codes are physically removed and how digital records will stay aligned with those physical rejects.
• Aggregation process: If utilized, meticulously confirm case and pallet data links, alongside rework and reject handling protocols.
One line trial, one integrated review
It is always better to test the complete setup together. Running one integrated line trial can effectively demonstrate whether carton function, serialized printing, camera checks, and reject handling actually work as planned. If your team wishes to review a dieline, evaluate a code area, or optimize a line setup, please contact us for a practical discussion regarding our carton formats and your exact project fit.
FAQ
What is the main risk if child resistance and serialization are planned separately?
The primary risk is a late-stage space conflict. The exact same carton panel might need to accommodate opening features, user instructions, legal text, and the serialization code area. Clashing priorities here can rapidly lead to artwork rework, packaging line delays, or severe code quality problems.
Can the blister usually stay the same when a child-resistant carton is added?
In many cases, yes. The child-resistant mechanism is typically added around the blister strip, meaning the blister itself rarely needs a complex redesign. However, the full, integrated pack should still be carefully reviewed for proper product fit and line performance.
Does child resistance count as tamper evidence?
No. Child resistance and tamper evidence solve entirely different problems. A child-resistant feature helps limit physical access by children, whereas tamper evidence explicitly shows whether a pack has been previously opened or maliciously altered.
Why should the code be checked on the closed carton?
The state of the code can change during the closing and handling stages, as rubbing, pressure, and movement may heavily degrade its readability. The final, assembled market pack is the only correct point for verification, since that is exactly what downstream scanners will need to read.
Who should approve the final setup?
The final setup should be comprehensively reviewed across packaging engineering, regulatory, quality, artwork, serialization, IT, and operations departments. This broad alignment is crucial, as the project fundamentally merges physical carton design with strict digital data control.
